XCS type cyclone sedimentation tank sand removal machine

Product Introduction purposeThe cyclone sedimentation tank system is a pretreatment measure in sewage treatment plants, mainly used to remove large inorganic sand and gravel with a diameter of 0.2mm or more in water suppl

CLASSIFICATION：TDS-48RD

UPDATE TIME：2025-04-09

Consultation 021-522-30030

Detailed Introduction

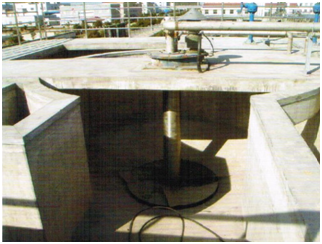

XCS型旋流沉砂池除砂机

purpose

The cyclone sedimentation tank system is a pretreatment measure in sewage treatment plants, mainly used to remove large inorganic sand and gravel with a diameter of 0.2mm or more in water supply and drainage engineering.

Working principle

Wastewater enters the circular sedimentation tank from the tangential direction, and the rotation of the mechanical impeller accelerates the spiral motion of the wastewater in the tank. The sand particles in the sewage are washed away and sink along the pool wall under the action of centrifugal force and gravity, while the organic substances attached to the sand particles float away with the water flow and enter the next process. The sand that sinks to the bottom of the pool is lifted by air or pump and enters the sand water separator to achieve thorough sand water separation. The supernatant flows back to the grid well or sedimentation tank.

model selection

XCS - □ - □ Note: XCS cyclone sand removal machine, □ Sand suction method: Q gas lift, B pump suction, □ Processing capacity.
