QXS type bridge sand suction machine

Product Introduction purposeMainly used for the removal of sedimentation in horizontal aeration sedimentation tanks.Working principleThe bridge type sand suction machine is mainly composed of a walking device, a main beam

CLASSIFICATION：TDS-48RD

UPDATE TIME：2025-04-09

Consultation 021-522-30030

Detailed Introduction

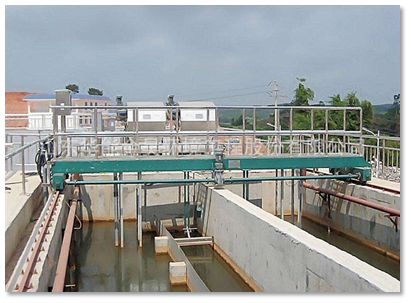

QXS型桥式吸砂机

purpose

Mainly used for the removal of sedimentation in horizontal aeration sedimentation tanks.

Working principle

The bridge type sand suction machine is mainly composed of a walking device, a main beam, a sand suction system, etc. The sand suction machine travels back and forth on the steel rails of the sedimentation tank surface. The sand suction system sucks out the sand water mixture at the bottom of the tank and discharges it into the sand water separator for sand water separation. In addition, the sand suction machine can also be equipped with a skimming plate according to user requirements to scrape the floating slag on the water surface into the slag tank at the end of the pool.

model selection

QXS - □ - □ Note: QXS bridge sand suction machine, □ Number of slots: D single slot, S double slot, □ Pool width.
