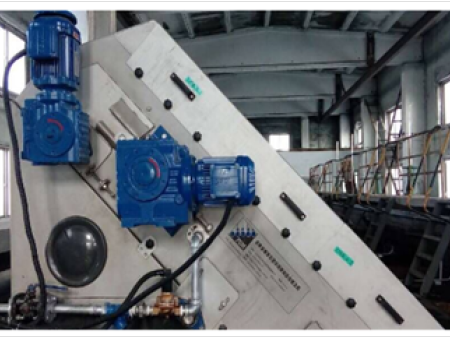

GF series mesh type stepped grille cleaning machine

Product Introduction purposeIt is a new model of fine grid in China, used to intercept small and large impurities such as hair and fibers in sewage, which greatly improves the treatment capacity of subsequent water ...

CLASSIFICATION：TDS-48RD

UPDATE TIME：2025-04-14

Consultation 021-522-30030

Detailed Introduction

GF系列网板式阶梯格栅除污机

purpose

It is a new model of fine grid in China, used to intercept small and large impurities such as hair and fibers in sewage, which greatly improves the treatment capacity of subsequent water treatment systems. It is a good choice to replace rotary solid-liquid separators, drum grids and other models.

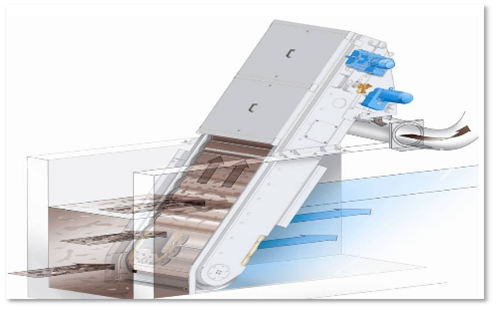

Working principle

The mesh plate chain is assembled from mesh plates and traction chains. During operation, some fiber debris adheres to the mesh plate by hydraulic force, and block and granular garbage accumulates on the steps. When the mesh plate is lifted, it continuously separates and treats the garbage from the water; The high-efficiency cleaning brush set at the rear brushes the vast majority of debris into the conveyor and flushes the mesh surface through an automatic flushing device to regenerate the mesh holes.

characteristic

The stepped mesh board has high separation accuracy, reaching as small as 1-2mm;

Heavy duty stainless steel traction chain, maintenance free bearing without water;

Adjustable and efficient cleaning device, especially suitable for occasions with high fiber waste;

The whole machine has low power, less flushing water, and saves energy consumption;

Fully automatic control can be achieved through timing and liquid level difference.
