QNW型内进流式网板格栅除污机

Application of QNW type internal flow mesh grille cleaning machine

It is a specialized water treatment equipment that can continuously and automatically intercept and remove various shapes of debris in fluids. It can thoroughly intercept and remove small debris in sewage, and can be widely used in urban sewage treatment, water supply industry, industrial wastewater, food processing industry, paper industry, etc.

Working principle

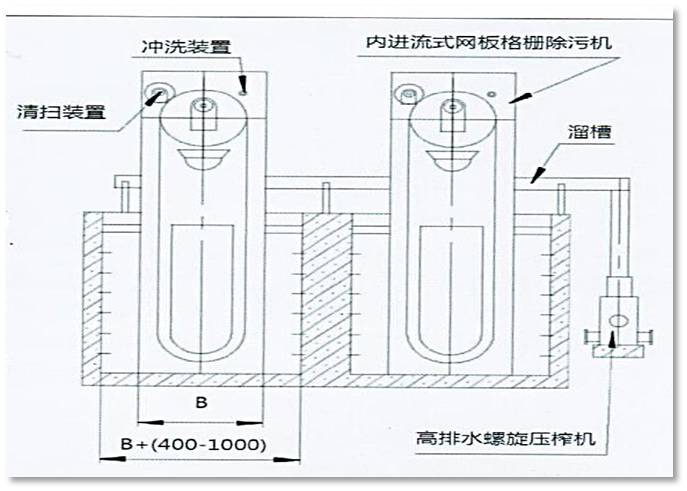

The sewage flows into the gap between the two side mesh plates through the inlet hole on the upstream side of the rack, and then flows out through the mesh plate holes. The debris in the sewage adheres to the mesh plates, and the mesh plate chain rotates under the driving of the main transmission mechanism. The mesh plates adsorbed with impurities are lifted up to the rotating sprocket. Under their own gravity, the debris is washed and cleaned by the high-pressure flushing device and falls into the slag collection tank.

characteristic

The rack is a rectangular box shaped structure with good rigidity, is not easily deformed, and is easy to install;

The mesh board is made of stainless steel material, with a long service life and a hole diameter of Φ 1-6mm. It can intercept small debris and has a wide range of applications;

Maintenance free bearings without water, water outlet on both sides of the center inlet, large water passage area of the mesh plate, and high flow rate;

The unwashed debris in the mesh is still trapped in the mesh tube and will not enter the next process;

It can achieve fully automatic control and multiple safety protections.
