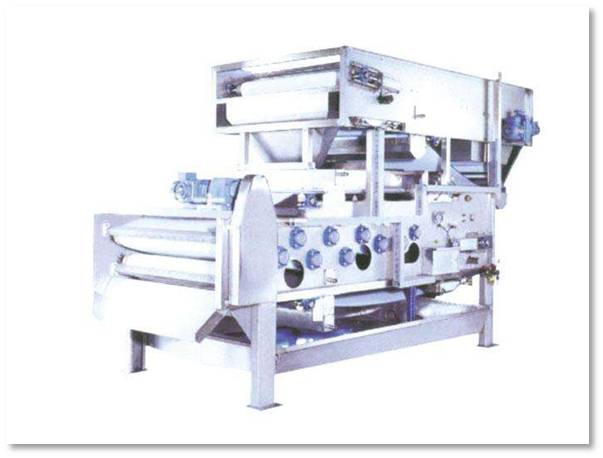

DT type belt dewatering machine

Product Introduction purposeMainly used for dewatering residual sludge or mixed sludge in sewage treatment plants, reducing its volume and facilitating further landfill and incineration treatment. Suitable for sludge dewa

CLASSIFICATION：TDS-48RD

UPDATE TIME：2025-04-09

Consultation 021-522-30030

Detailed Introduction

DT型带式脱水机

purpose

Mainly used for dewatering residual sludge or mixed sludge in sewage treatment plants, reducing its volume and facilitating further landfill and incineration treatment. Suitable for sludge dewatering in various industries such as water supply and drainage, papermaking, textile, leather, chemical, food, etc.

Working principle

Through a series of rollers and drums, the upper and lower layers of filter belts are tensioned, and the sludge sandwiched in the middle is continuously squeezed out of the free water in the sludge under the shear action of the filter belt. Thus achieving the separation of mud and water. The concentration section can be rotary drum or filter belt concentration.

characteristic

Stepless speed regulation, can be adjusted to the operating speed at any time, with strong adaptability; Specially designed flushing nozzle to clean the filter belt thoroughly; Gravity dewatering presents a tilted design, with an increased static head for sludge to enhance dewatering efficiency; The filter belt has automatic correction and low operating noise.

model selection

DT - □ Note: DT type belt dewatering machine, □ Filter belt width (mm)

DTN - □ Note: DTN type belt type concentration dewatering machine, □ Filter belt width (mm)
