HF type rotary solid-liquid separator

Product Introduction Model: HF300-HF3600, HF represents rotary solid-liquid separator, and the number represents equipment width (mm). If the machine width exceeds 1800mm, it will be made into two parallel units of the sa

CLASSIFICATION：TDS-48RD

UPDATE TIME：2025-04-09

Consultation 021-522-30030

Detailed Introduction

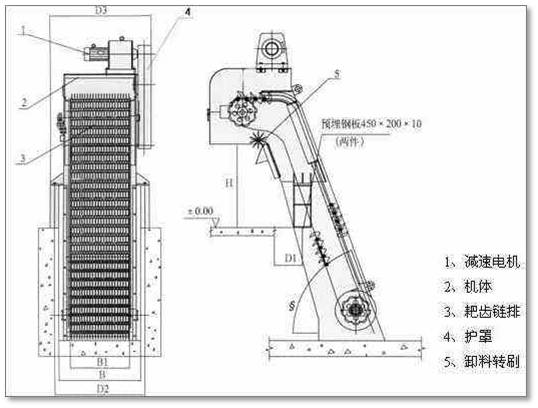

Model: HF300-HF3600, HF represents rotary solid-liquid separator, and the number represents equipment width (mm). If the machine width exceeds 1800mm, it will be made into two parallel units of the same specification, using one set of driving devices.

Installation angle α: 60~85 °

Rake tooth movement speed:~ 2m/min

Applicable channel depth: 1000-12000mm

Length of diversion channel:> 1500+H*Ctg α

Gap between bars (mm): 1, 3, 5, 10, 20, 30, 40, 50

Water depth in front of the fence (m): 1.0

Liquid flow rate: 0.5~1.0m/s

model selection

HF - □ Note: HF rotary solid-liquid separator, □ machine width mm.
